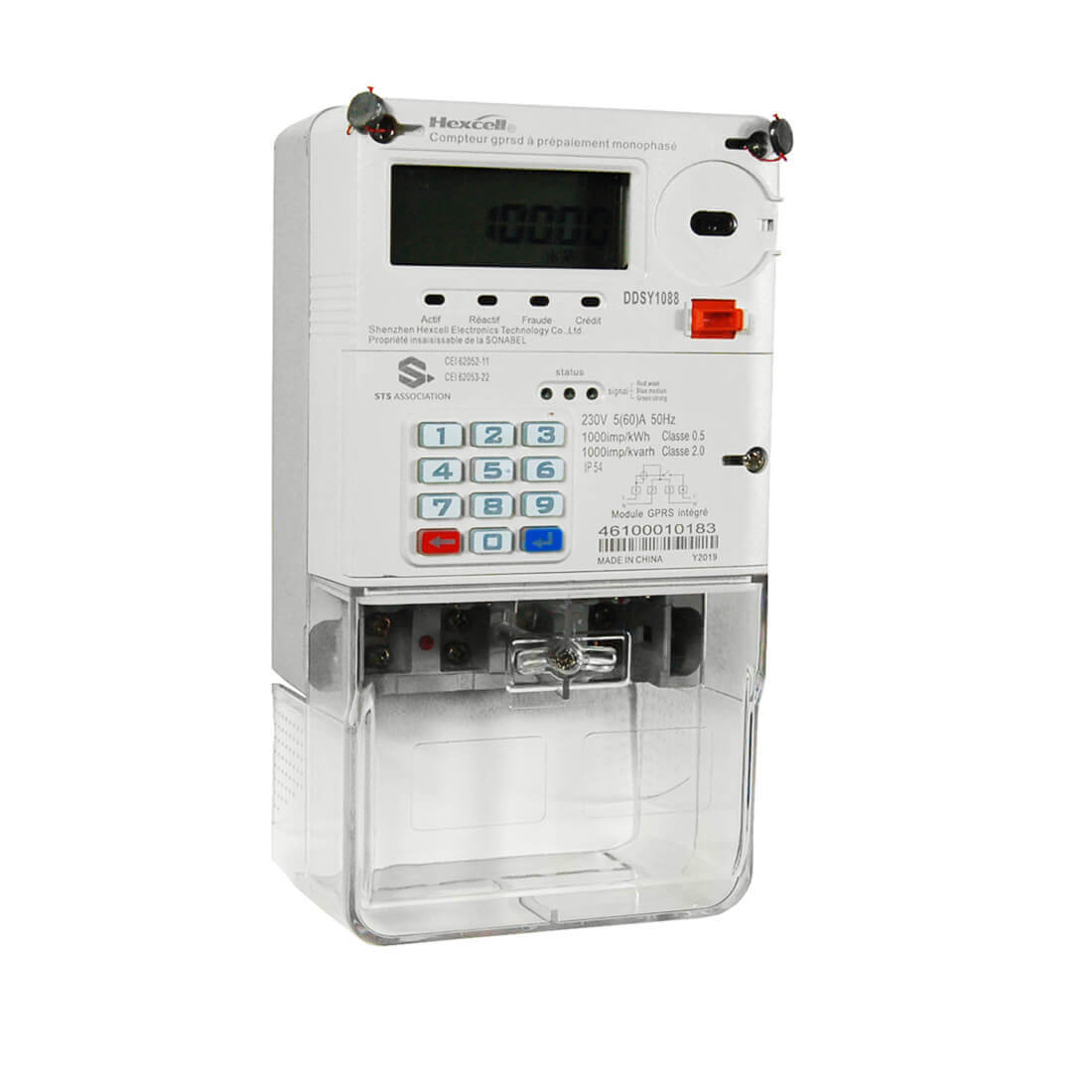

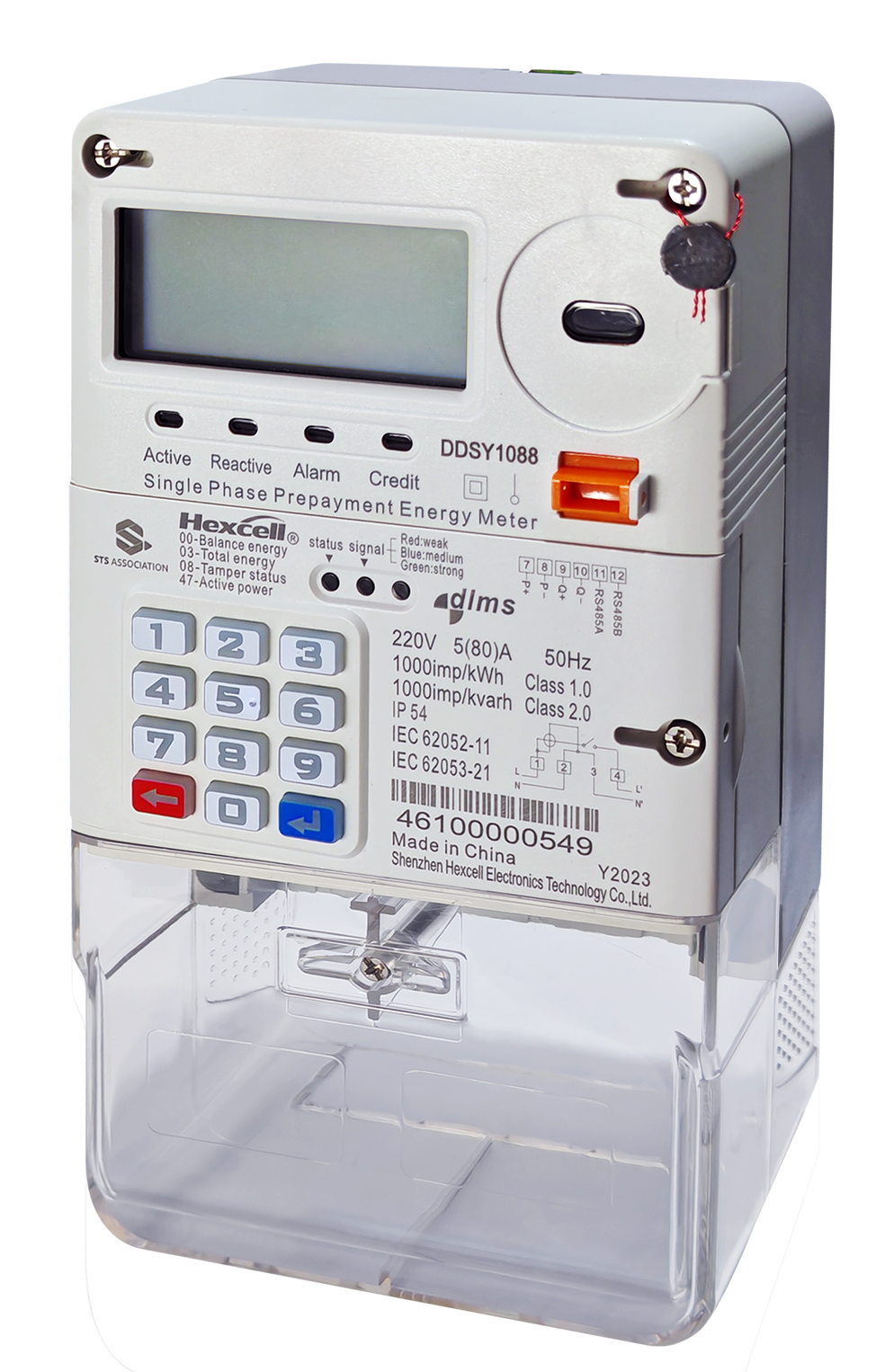

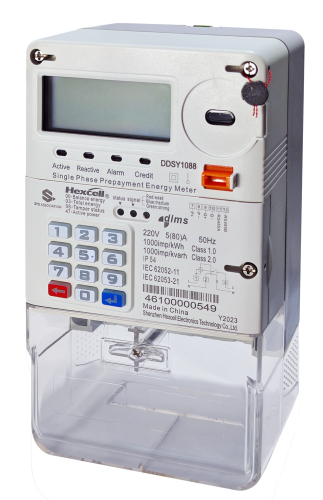

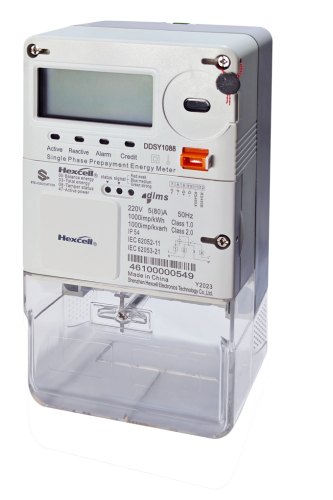

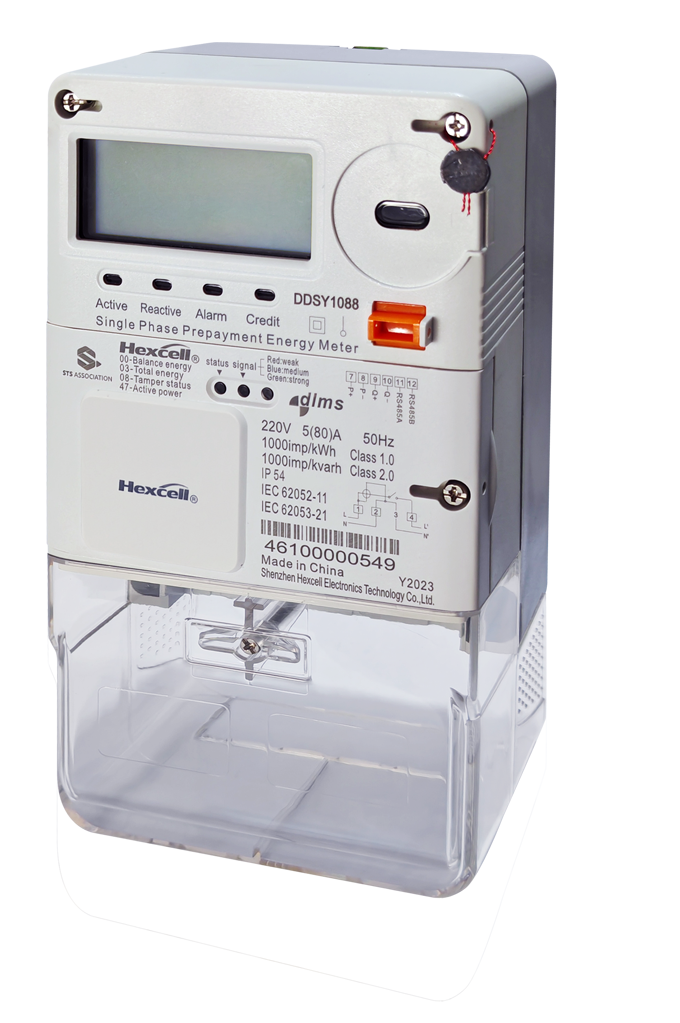

Single Phase Prepaid/Postpaid Electricity Meter (STS DDSY1088/DDS1088)

Item No.: 52

INQUIRY

出口各国的原产地证书

Description

Product Description：

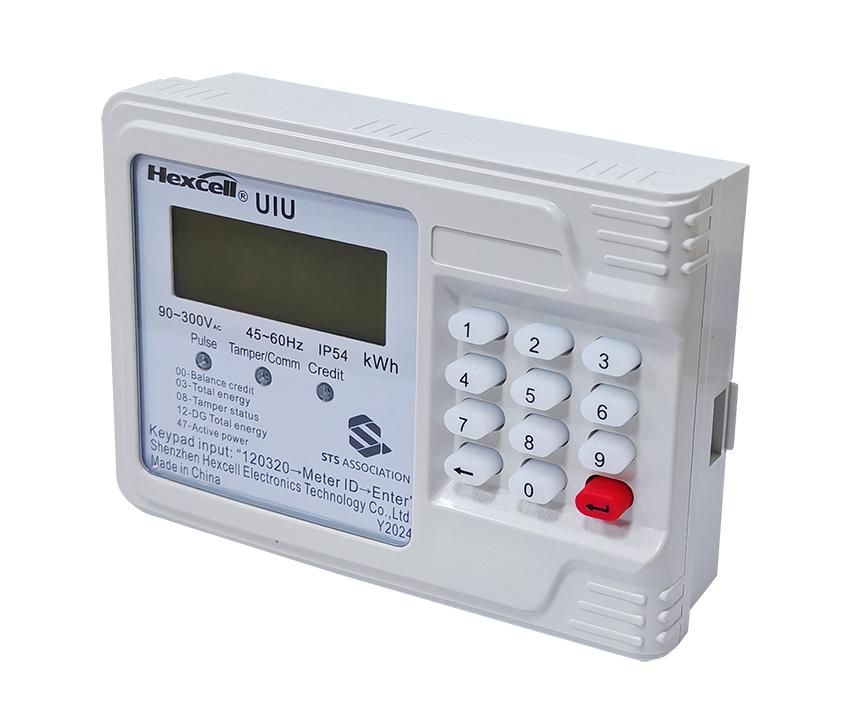

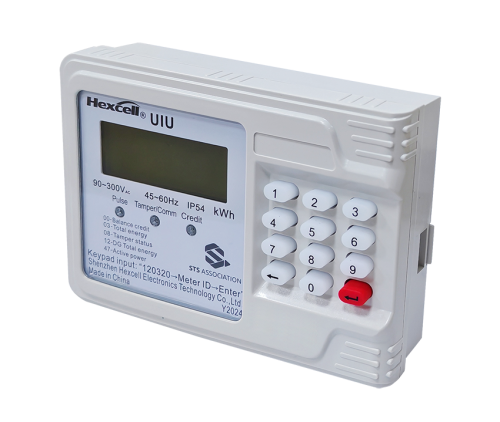

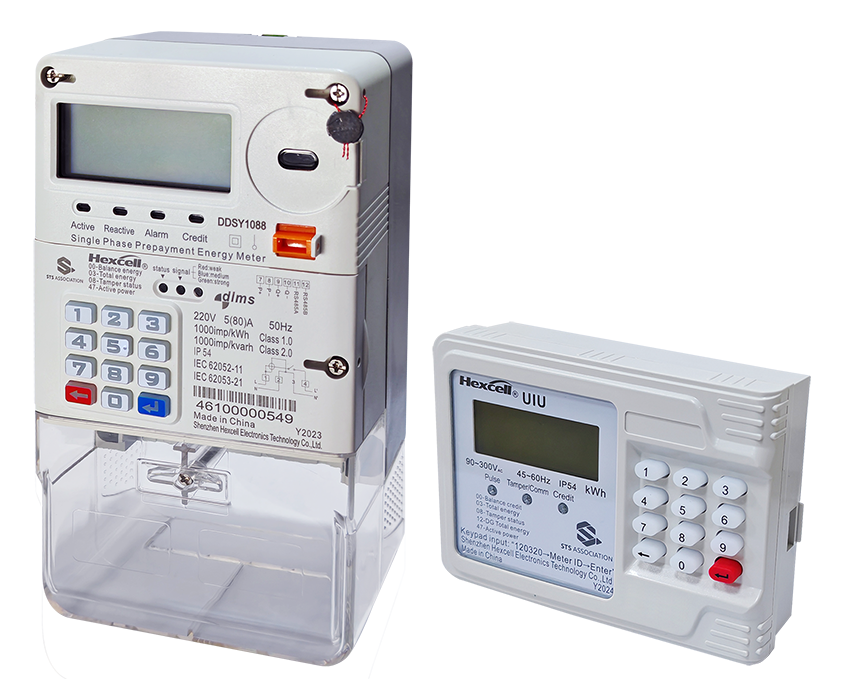

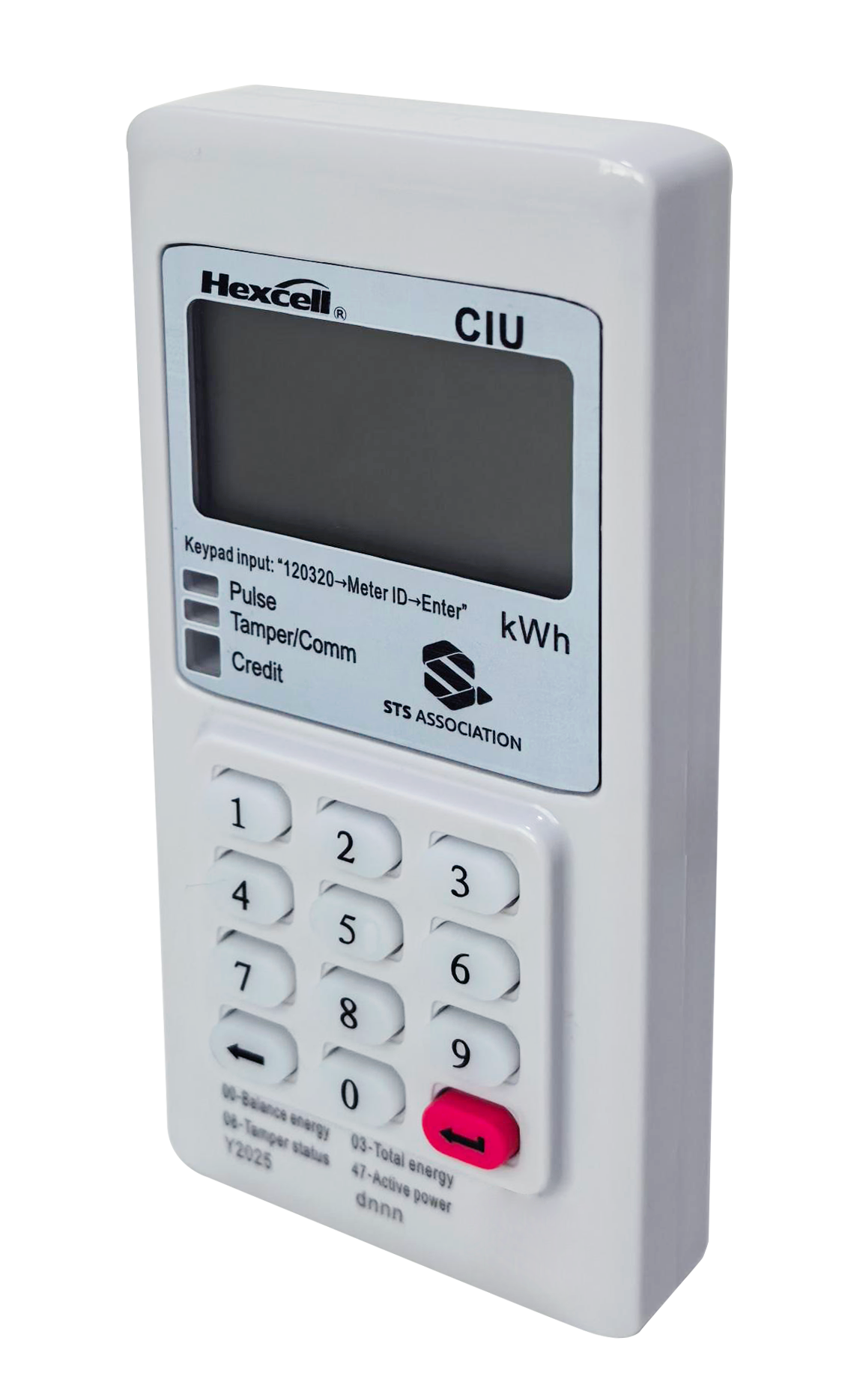

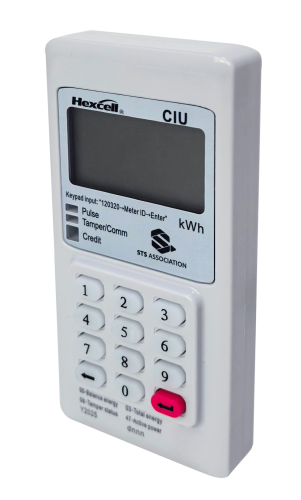

The Hexcell Single Phase Prepaid/Postpaid Electricity Meter (STS DDSY1088/DDS1088) is a high-accuracy active energy metering device that uses secure digital media for information exchange. Users purchase electricity in advance through a vending system, receive a 20-digit STS TOKEN, and load the credit into the meter via the numeric keypad (or the external CIU keypad for split-type installations). This enables reliable active energy metering and prepaid control. Prepaid and postpaid modes can be switched as needed.
The meter supports flexible external communication modules—including RS485, LoRa, PLC, 2G/4G, M-Bus and LoRaWAN—allowing remote connection to AMI systems. Different power supply configurations enable separate or individual metering to suit various installation requirements.
Designed for residential communities, apartments, factories, shopping malls, office buildings, hotels and photovoltaic power stations, the Hexcell STS DDSY1088/DDS1088 meter delivers accurate measurement, anti-tamper protection, multi-tariff capability and long-term reliability under international IEC and STS standards. It helps utilities reduce non-technical losses, simplify billing and enable efficient remote management in both traditional and smart-grid environments.

Technical Specification：

Mode	Single-phase two wire, single-phase three wire
Raged Voltage(Un)	120V、220V、230V、240V
Operating Voltage	Un≥220V 40%～120%Un Un≤120V 80%～120%Un
Starting Current	0.002Ib/0.004Ib
Basic Current(Ib)	5A、10A
Maximum Current (Imax)	60A、80A、100A
Accuracy	Active：Class 1；Reactive：Class 2
Frequency	50Hz、60Hz
Communication	UPlink:IR,RS485,LoRa,2G/4G,LoRaWAN; Downlink:PLC,LoRa,MBus,RS485
Power Consumption	Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA
Operating Temperature	-40℃～75℃
Humidity	Annual average≤75％；Max≤95％
Protocol	IEC62056-21Mode C/ DLMS
Display	LCD(CIU)
Lifetime	>10 years
Protection Level	IP54
Installation	BS type
Dimensions(mm)	20011276.5 or 22111276.5 or 16011276.5 (optional. Default: 20011276.5)
Daily timing error	≤0.5s/d(21℃～25℃)
Connection	LLNN/LNNL
Neutral Measurement	Optional
Neutral switching (closing and opening)	Optional
Standards	IEC62052-11、IEC62053-21、IEC62053-23、IEC62055-31、IEC62055-41
Certificate	ISO9001、STS、KEMA、DLMS
MOQ	1000pcs
Delivery time	30 days
Application	Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations

Function Features:

Structure	Replaceable battery without removing the upper cover (optional), infrared sealable (optional), The keyboard can be selected according to the customer's needs The footer can be long/short
Metering and Storage	Measure forward/reverse active energy, store 12-months electric energy, and supports multi-tariff metering, total power consumption of last 12-months, Maximum demand, Multi-tariff
Measurement	Measure and read voltage, current, active power, reactive power, etc
Control Tariff	Supports STS prepaid function, prepaid and postpaid can be switched, overdraft and low battery alarm
Multiple Tariff	Seasonal table, weekly table, daily periods, tariffs, tariff number, public holiday tariff, etc.
Event Record	It can record events such as switch-on and switch-off, recharge, cover opening, power off, reverse, undervoltage, overvoltage, etc
Clock	Daily timing error ≤ 0.5S (optional)
Friendly time	No switch-off under arrears
Anti-tamper	Electricity theft automatic switch-off electricity theft TOKEN switch-off

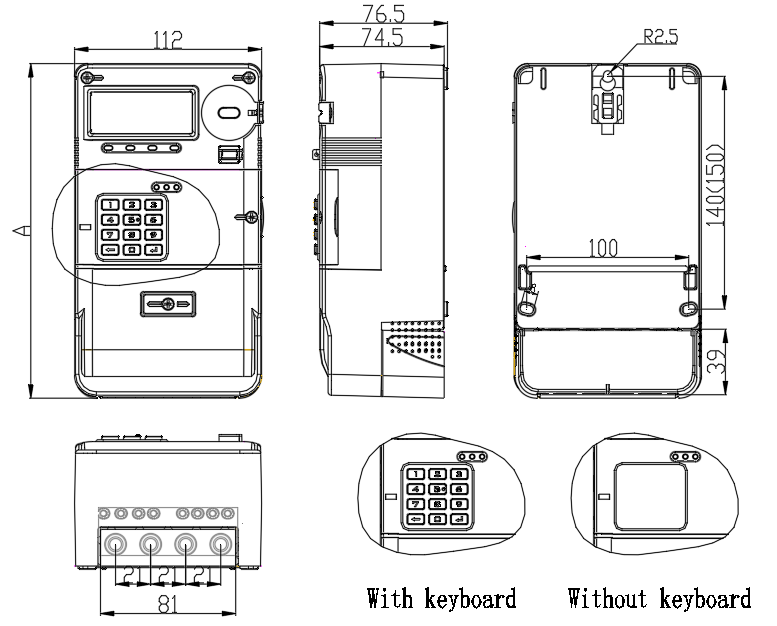

Installation Dimension:
