Smart Din Rail Meter Enclose

Description

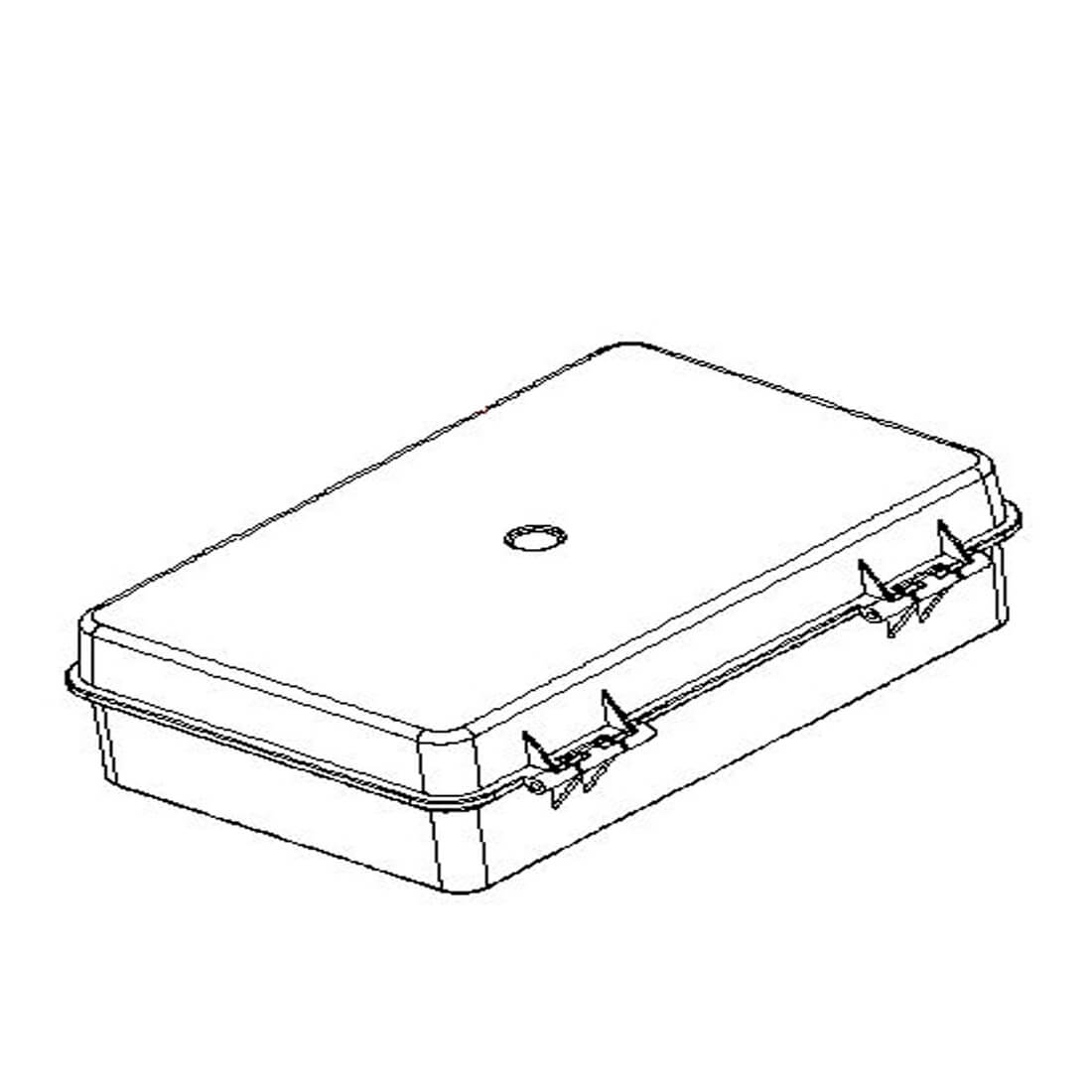

SMART DIN RAIL METER ENCLOSE

SPECIFICATION

1(2) Positions controller box
1.Open box cover

2.Fix this box to place where needs to be installed with screws.

3. Install the controllers into the Rail of box.

4.Wiring

5.Close top cover and nail the screws.

4 Positions controller box

1.Open the box cover

2. Fix this box to place where needs to be installed with screws.

3. Install the controllers into the Rail of box.

4 .Wiring

5. Close top cover and nail the screws.

8 Positions controller box
1.Open the box cover

2. Fix this box to place where needs to be installed with screws.

3. Install the controllers into the Rail of box.

4 .Wiring

5. Close top cover and nail the screws.
