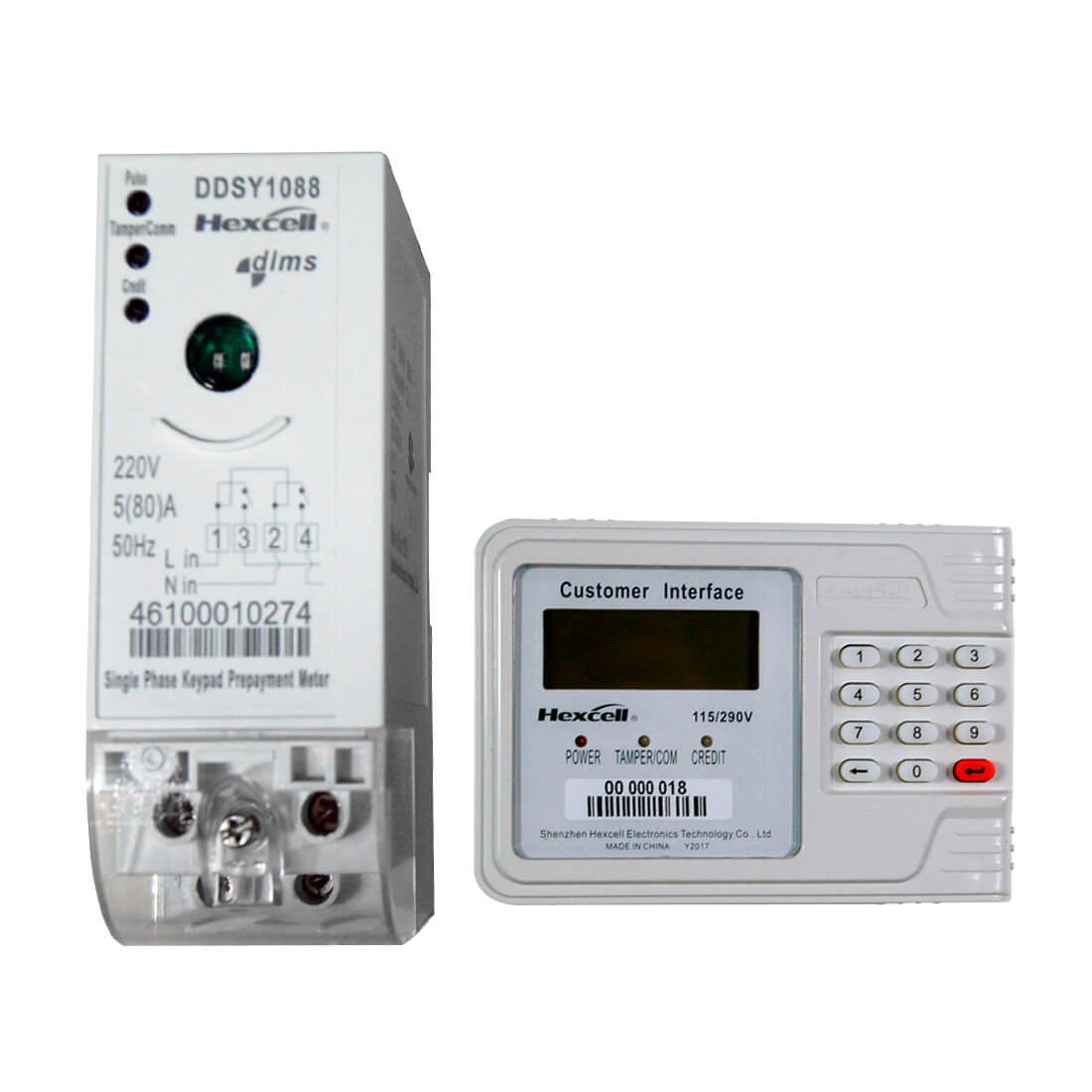

SMART SINGLE PHASE PREPAID SPLIT TYPE KEYPAD METER DDSY1088
DESCRIPTION
The single phase electronic active split type prepaid keypad meter 1088 measures total active energy. It is STS certified and complies with the standards of IEC62052, IEC62053, IEC62055, IEC62056 etc . The Measurement and Control Unit (MCU) is DIN standard bottom connected complied and can be installed into the meter box to prevent unauthorized operation. The Customer Interface Unit (CIU) is installed in the Customer’s house to recharge and monitor MCU.
FEATURES
1.Easily configurable prepaid & postpaid mode .
2.Reverse energy measured in forward.
3.Easily configurable user friendly kWh.
4.Configurable LCD displaying items.
5.Programming reading by optical & pin 8 SCSSCAAA9 port (Optional).
6.Ultra-high OFDM G3 communications between MCU and CIU (Wired,RF Optional).
7.Real time measures voltage, current, frequency, active power, etc.
8.Events record with time stamp.
9.Open Protocol: DLMS/COSEM.
10.Advanced AMI/AMR integration .
