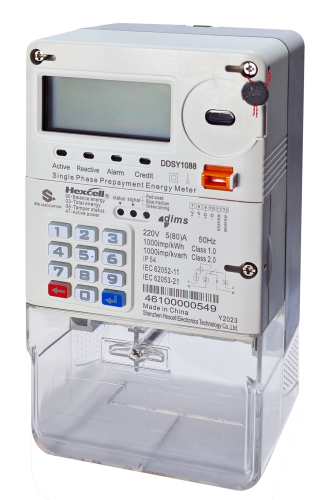

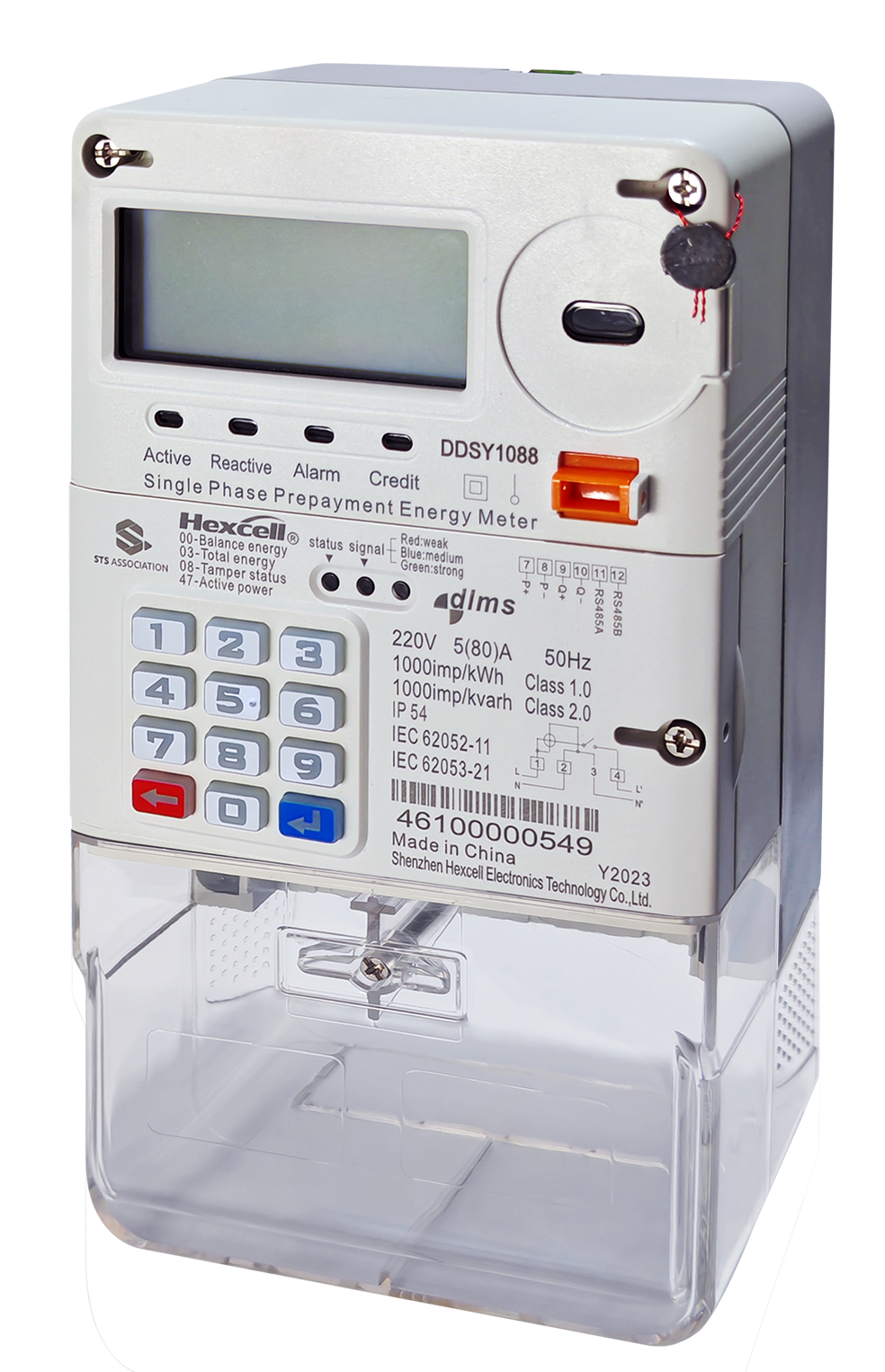

Single Phase Multiple Power Supply Electricity Meter(STS DDSY1088/DDS1088)

Single Phase Multiple Power Supply Electricity Meter(STS DDSY1088/DDS1088)

Item No.: 53

INQUIRY

Description

Product Description：

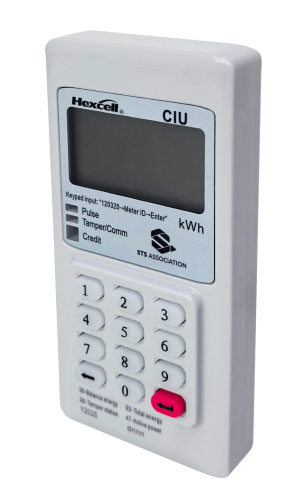

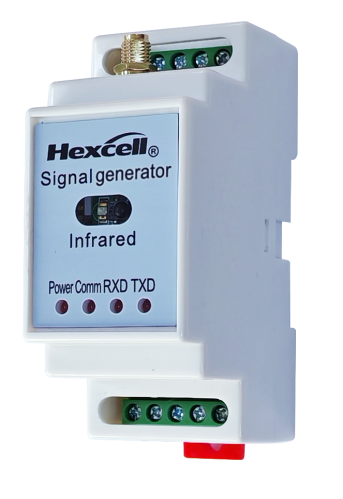

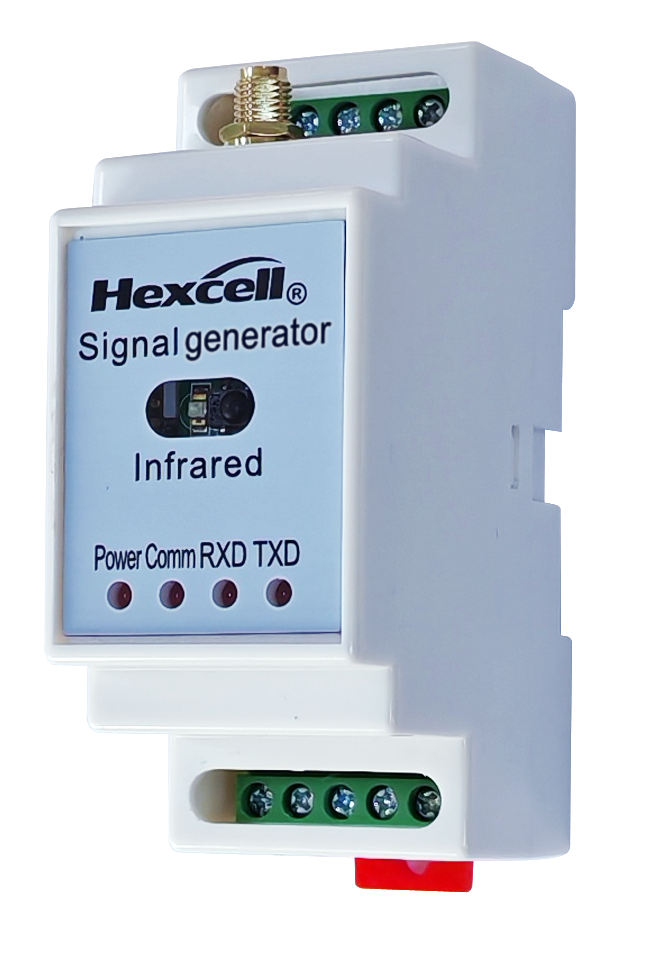

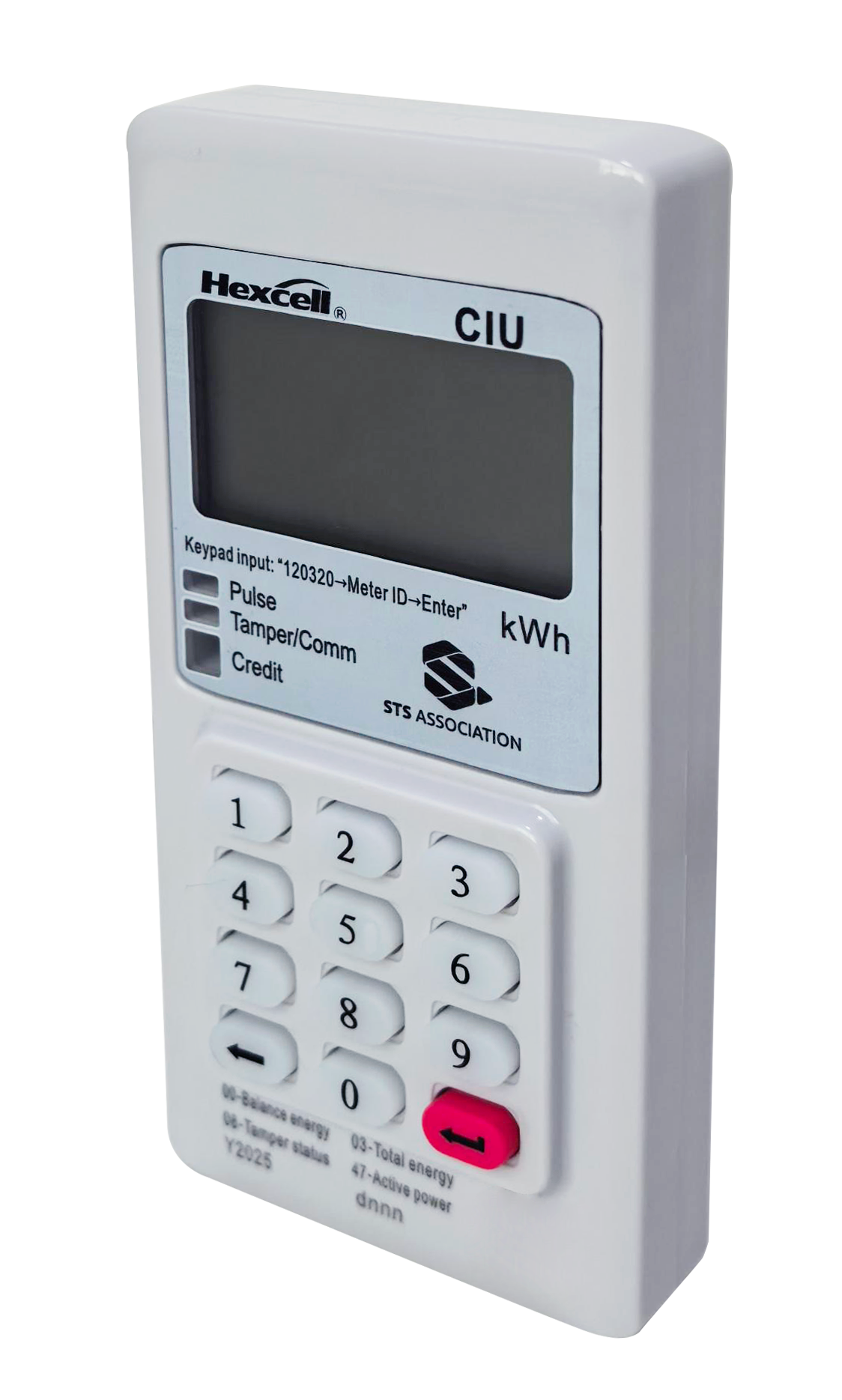

Single-phase STS prepaid electric energy meter is an active energy metering instrument that uses digital media as the information exchange medium, and the user installs the pre-purchased electricity and settles the electricity consumption with the electricity. The user purchases the electricity through the power purchase device to obtain the TOKEN of the 20-digit serial number, loads the pre-purchased power, and enters the TOKEN into the meter through the numeric keypad interface (the split meter can also be connected to the keyboard interface of the external CIU) to realize the metering and prepaid control functions of active energy. Prepaid and postpaid can be switched. The external module of the meter can be remotely connected to the AMI system by selecting the appropriate communication mode (RS485, LoRa, PLC, 2G/4G, MBus, LoRaWAN etc) .Separate and individual metering can be achieved through different power supply methods.

Technical Specification：

Mode	Single-phase two wire, single-phase three wire
Raged Voltage(Un)	120V、220V、230V、240V
Operating Voltage	Un≥220V 40%～120%Un Un≤120V 80%～120%Un
Starting Current	0.002Ib/0.004Ib
Basic Current(Ib)	5A、10A
Maximum Current (Imax)	60A、80A、100A
Accuracy	Active：Class 1；Reactive：Class 2
Frequency	50Hz、60Hz
Communication	UPlink:IR,RS485,LoRa,2G/4G,LoRaWAN; Downlink:PLC,LoRa,MBus,RS485
Power Consumption	Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA
Operating Temperature	-40℃～75℃
Humidity	Annual average≤75％；Max≤95％
Protocol	IEC62056-21Mode C/ DLMS
Display	LCD(CIU)
Lifetime	>10 years
Protection Level	IP54
Installation	BS type
Dimensions(mm)	20011276.5 or 22111276.5 or 16011276.5 (optional. Default: 20011276.5)
Daily timing error	≤0.5s/d(21℃～25℃)
Connection	LLNN/LNNL
Neutral Measurement	Optional
Neutral switching (closing and opening)	Optional
Standards	IEC62052-11、IEC62053-21、IEC62053-23、IEC62055-31、IEC62055-41
Certificate	ISO9001、STS、KEMA、DLMS
MOQ	1000pcs
Delivery time	30 days
Application	Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations

Function Features:

Structure	Replaceable battery without removing the upper cover (optional), infrared sealable (optional) The keyboard can be selected according to the customer's needs The footer can be long/short
Metering and Storage	Measure forward/reverse active energy, store 12-months electric energy, and supports multi-tariff metering, total power consumption of last 12-months, Maximum demand, Multi-tariff
Measurement	Measure and read voltage, current, active power, reactive power, etc
Control Tariff	Supports STS prepaid function, prepaid and postpaid can be switched, overdraft and low battery alarm
Multiple Tariff	Seasonal table, weekly table, daily periods, tariffs, tariff number, public holiday tariff, etc.
Event Record	It can record events such as switch-on and switch-off, recharge, cover opening, power off, reverse, undervoltage, overvoltage, etc
Clock	Daily timing error ≤ 0.5S (optional)
Friendly time	No switch-off under arrears
Anti-tamper	Electricity theft automatic switch-offelectricity theft TOKEN switch-off
Dual-tariff	Measuring & Charging the different power source with specific tariff

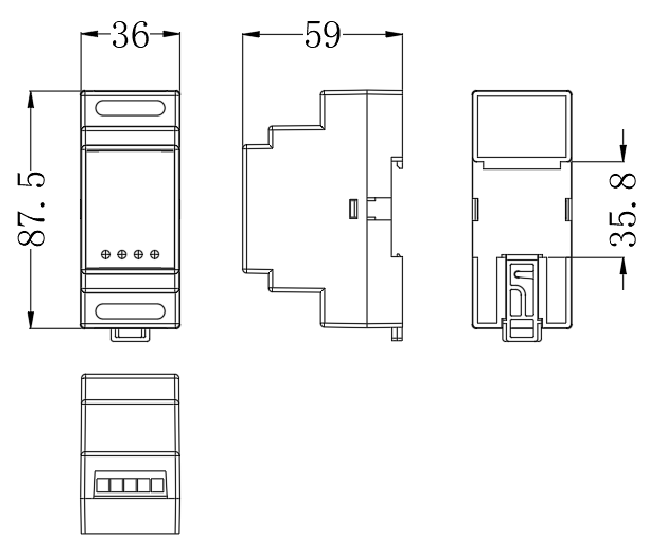

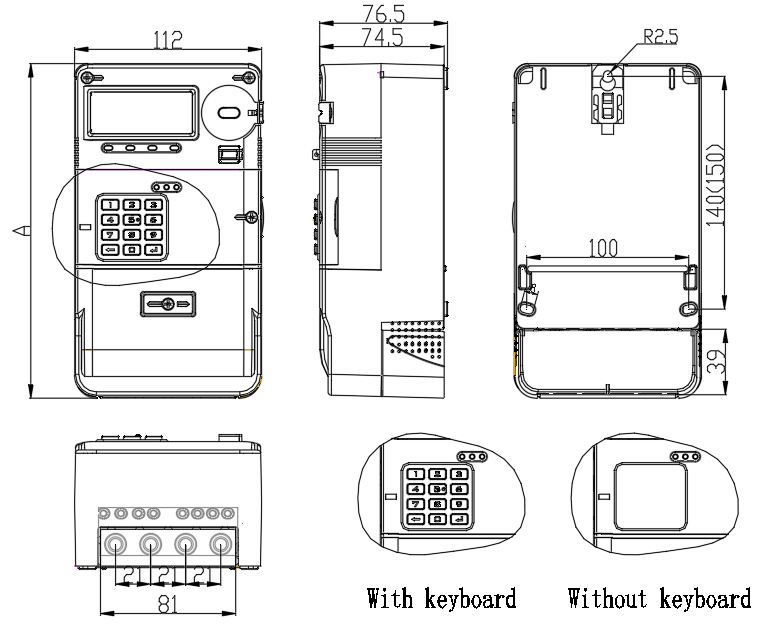

Installation Dimension:
