Product Description：

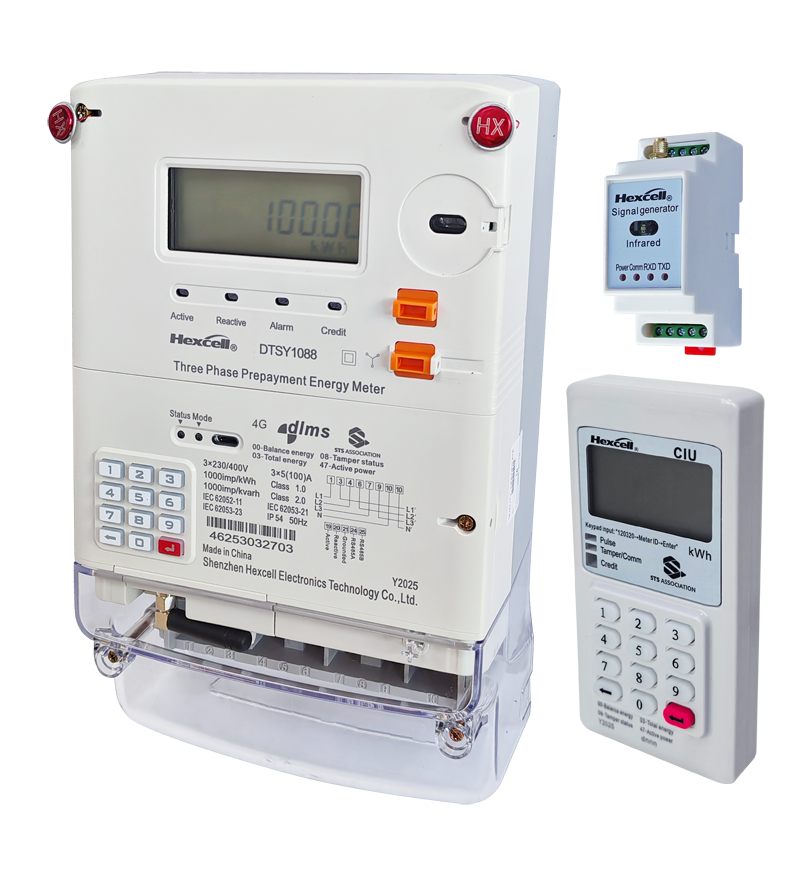

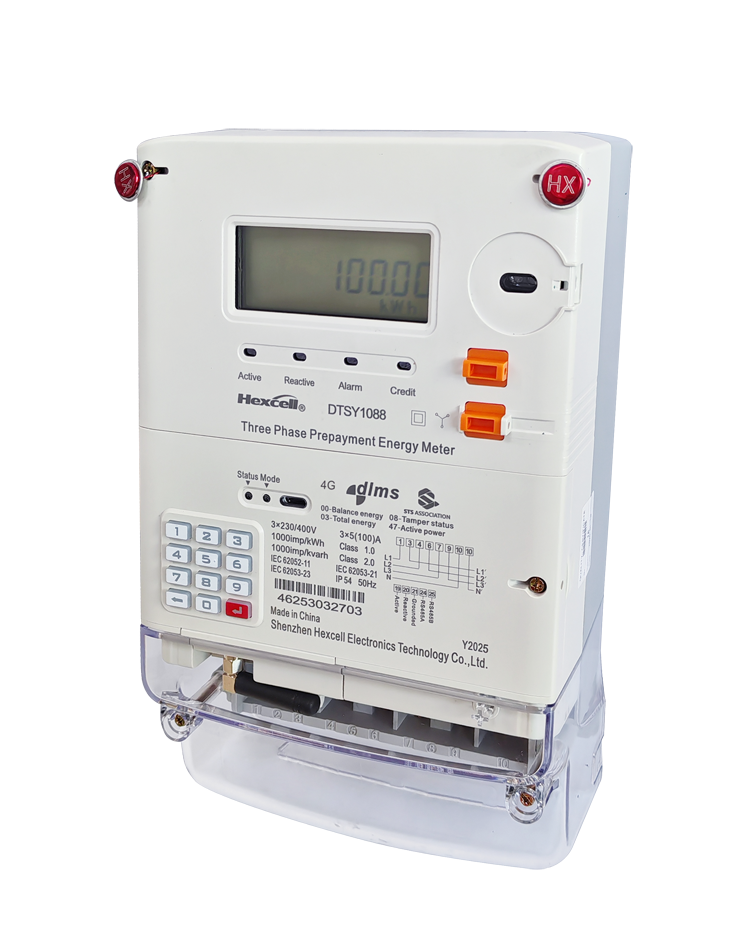

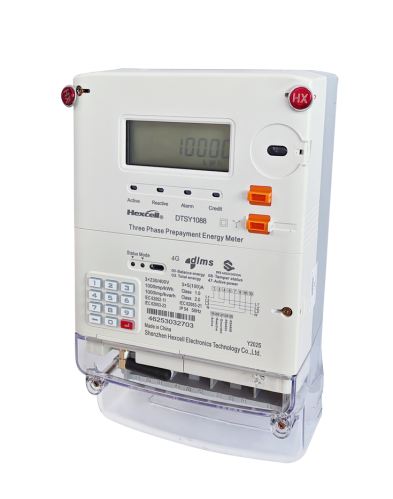

The Three Phase Multiple Power Supply Electricity Meter (STS DTSY1088/DTS1088) is an advanced three-phase prepaid smart energy meter designed for residential, commercial, industrial, and utility applications. It combines high-accuracy active energy measurement, STS-certified prepaid electricity management, flexible communication options, and AMI system integration to support modern smart grid requirements.

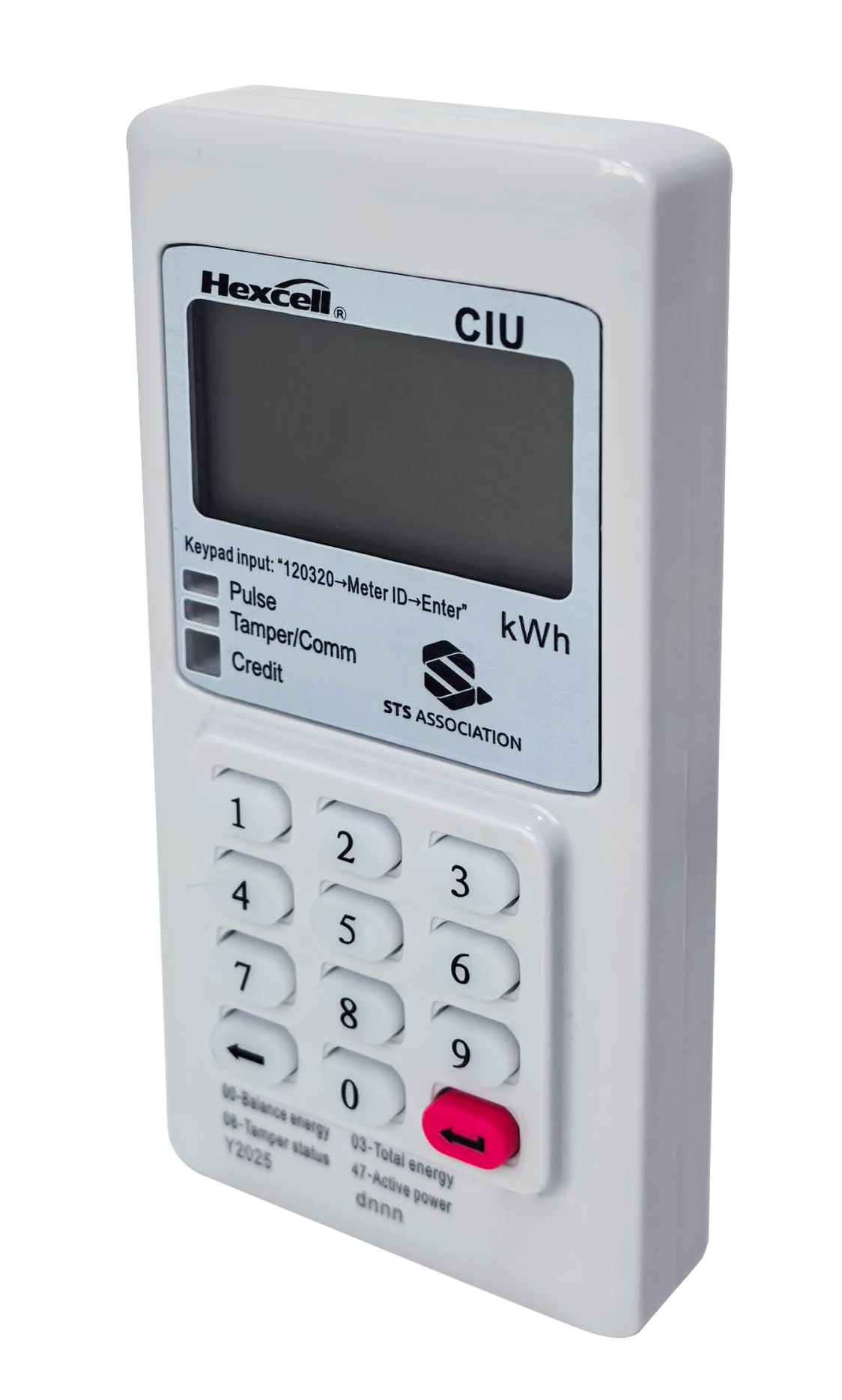

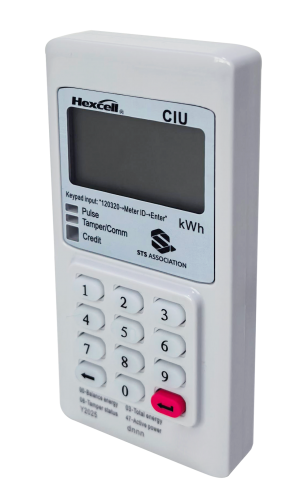

Based on the STS (Standard Transfer Specification) prepaid metering technology, users can purchase electricity and receive a secure 20-digit TOKEN through a vending system. By entering the TOKEN through the meter keypad or external Customer Interface Unit (CIU), the meter activates the purchased energy credit and provides accurate prepaid electricity control.
Hexcell's three-phase STS prepaid meter supports both prepaid and postpaid operation modes, allowing utilities to flexibly manage different customer billing scenarios. With optional communication modules including RS485, PLC, GPRS/4G, LoRa, LoRaWAN, and MBus, the meter can connect with AMI platforms for remote monitoring, data collection, tariff management, and intelligent energy management.
Designed for global electricity markets, this smart meter supports multiple voltage and current configurations, direct or indirect connection, multi-tariff measurement, load control, event recording, and anti-tamper protection. It is suitable for utility projects requiring reliable electricity metering, prepaid solutions, and smart energy infrastructure deployment.
Key benefits:
- STS-certified prepaid electricity management with secure TOKEN recharge
- Switchable prepaid and postpaid operation modes
- AMI-ready communication for remote meter management
- High accuracy measurement with multiple accuracy class options
- Multi-tariff support for flexible electricity pricing
- Advanced event recording and anti-tamper protection
- Long service life with robust environmental adaptability
Typical applications include smart residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations, and utility electricity distribution projects.
Technical Specification：
| Mode |
Three-phase four wire(Direct and indirect connection available) |
| Raged Voltage(Un) |
3*57.7/100V、3*220/380V、3*230/400V、3*240/415V |
| Operating Voltage |
Un≥220V 40%～120%Un Un≤120V 80%～120%Un |
| Starting Current |
0.001In、0.002Ib |
| Basic Current(Ib) |
1A、1.5A、5A、10A |
| Maximum Current (Imax) |
6A、10A、60A、80A、100A、120A |
| Accuracy |
Class 0.2s、Class 0.5s、Class 1、Class 2 |
| Frequency |
50Hz、60Hz |
| Communication |
UPlink:IR,RS485,LoRa,2G/4G,LoRaWAN,PLC;Downlink:PLC,LoRa,MBus,RS485 |
| Power Consumption |
Voltage circuit: ≤1.5W 5VA Current circuit: ≤2VA |
| Operating Temperature |
-40℃～75℃ |
| Humidity |
Annual average≤75％；Max≤95％ |
| Protocol |
IEC62056-21Mode C/ DLMS |
| Display |
LCD(CIU) |
| Lifetime |
>10 years |
| Protection Level |
IP54 |
| Installation |
BS type |
| Dimensions(mm) |
290*170*88.2 |
| Daily timing error |
≤0.5s/d(21℃～25℃) |
| Connection |
L1L1'L2L2'L3L3'NN'\L1L2L3NNL3'L2'L1'(optional） |
| Neutral Measurement |
Optional |
| Standards |
IEC62052-11、IEC62053-21、IEC62053-23、IEC62055-31、IEC62055-41 |
| Certificate |
ISO9001、STS、KEMA、DLMS |
| MOQ |
1000pcs |
| Delivery time |
30 days |
| Application |
Residential communities, apartments, factories, shopping malls, office buildings, hotels, photovoltaic power stations |
Function Features:
| Structure |
Replaceable battery without removing the upper cover (optional), infrared sealable (optional)
The keyboard can be selected according to the customer's needs |
| Metering and Storage |
Measure forward/reverse active energy, store 12-months electric energy, and supports multi-tariff metering, total power consumption of last 12-months, Maximum demand, Multi-tariff |
| Measurement |
Measure and read voltage, current, active power, reactive power, etc |
| Control Tariff |
Supports STS prepaid function, prepaid and postpaid can be switched,overdraft and low battery alarm |
| Multiple Tariff |
Seasonal table, weekly table, daily periods, tariffs, tariff number, public holiday tariff, etc. |
| Event Record |
It can record events such as switch-on and switch-off, recharge, cover opening, power off, reverse, undervoltage, overvoltage, etc |
| Clock |
Daily timing error ≤ 0.5S (optional) |
| Friendly time |
No switch-off under arrears |
| Anti-tamper |
Electricity theft automatic switch-offelectricity theft TOKEN switch-off |
| Dual-tariff |
Measuring & Charging the different power source with specific tariff |

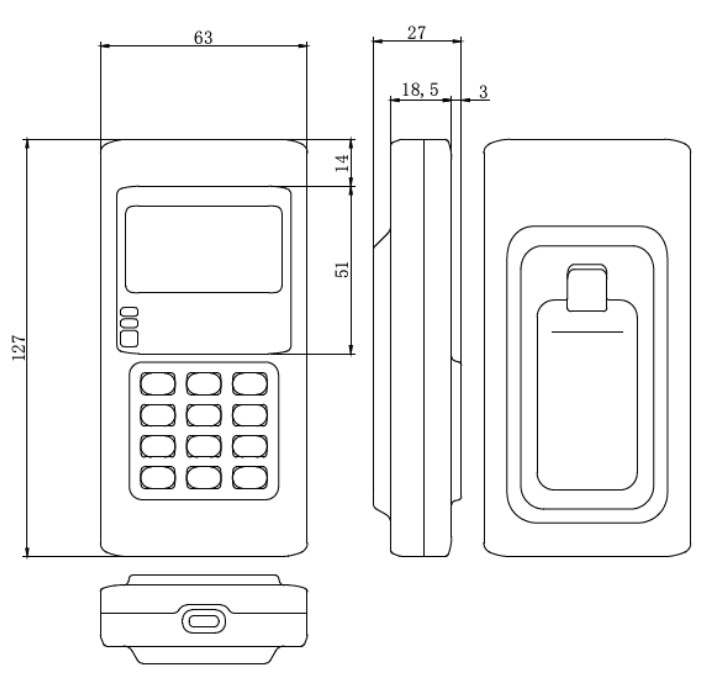

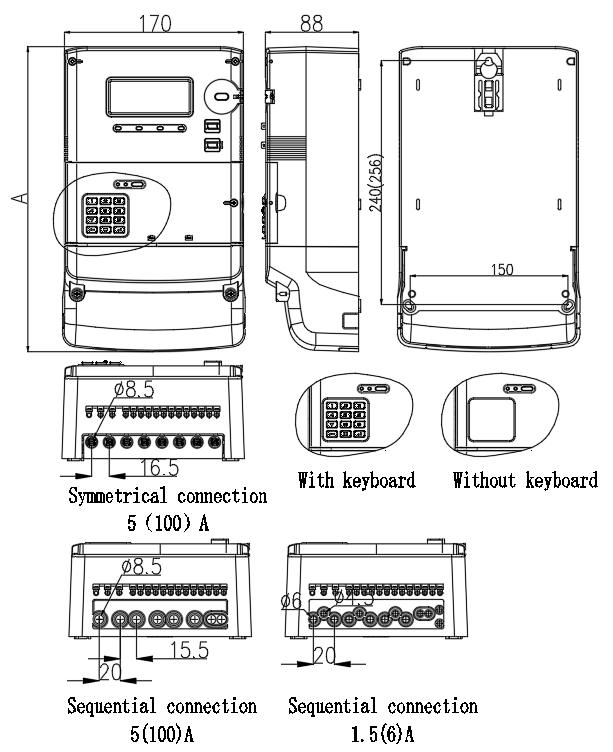

Installation Dimension:
